WARN 9.5ti Hummer H2 Multi-Mount Portable Winch
Product Description
WARN 9.5ti Hummer H2 Multi-Mount Winch
Top Notch Structure with Operator Feedback
The 9.5ti Multi-Mount packs 9500lbs of portable pulling capacity into a massive 12.5lb aluminum die-cast body. The new shape not only looks great, but sheds the elements like no other winch on the market: seals at the key points give extreme-duty water resistance. A Gen II Bosch motor delivers just the right balance between torque and speed. Plus another Warn Industries first - operator feedback - the thermometric indicator gives the operator information about motor temperature during the winching operation.
The 9.5ti Multi-Mount includes winch and carrier, wiring for the front of vehicle. Includes remote with integrated flashlight. Front receiver and rear power lead sold separately.
Part Number: 67912 |
|---|
Rated Line Pull: 9500 lbs. (4310 kgs.) single-line |
Motor: Gen II, Series Wound™ |
Remote Control: Remote, 12' (3.7m) lead, thermometric indicator, S2 elements, integrated flashlight |
Geartrain: 3-stage planetary |
Gear Ratio: 156:1 |
| Lubrication: Aeroshell #17 |
Clutch (freespooling): Sliding ring gear |
Brake: Automatic Direct Drive Cone |
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
Wire Rope: 125', 5/16" diameter (38m, 8mm diam.) |
Fairlead: Hawse |
Recommended Battery: 650 CCA minimum for winching |
Battery Leads: 2 gauge, 72" (1.83m) |
Finish: Chromate with high-gloss dark gray powder coat |
| Weight: 89 lbs. (36.3kgs.) |
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
|---|---|---|---|
| 0 (0) | 62(18.9) | 47 amps | 1/9500(4313) |
| 2000 (910) | 16.3(4.97) | 160 amps | 2/8650(4927) |
| 4000 (1810) | 11.8(3.60) | 230 amps | 3/7920 (3595) |
| 6000 (2720) | 9.31(2.84) | 305 amps | 4/7400(3359) |
| 8000 (3630) | 7.59(2.31) | 370 amps | 5/6940(3150) |
| 9500 (4310) | 6.67(2.03) | 425 amps |

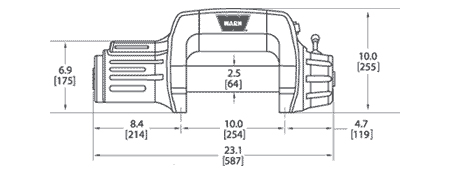

Winch Dimensions: 23.1" L. x 6.3" D. x 10.0" H.
(587mm L. x 160mm D. x 254mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
